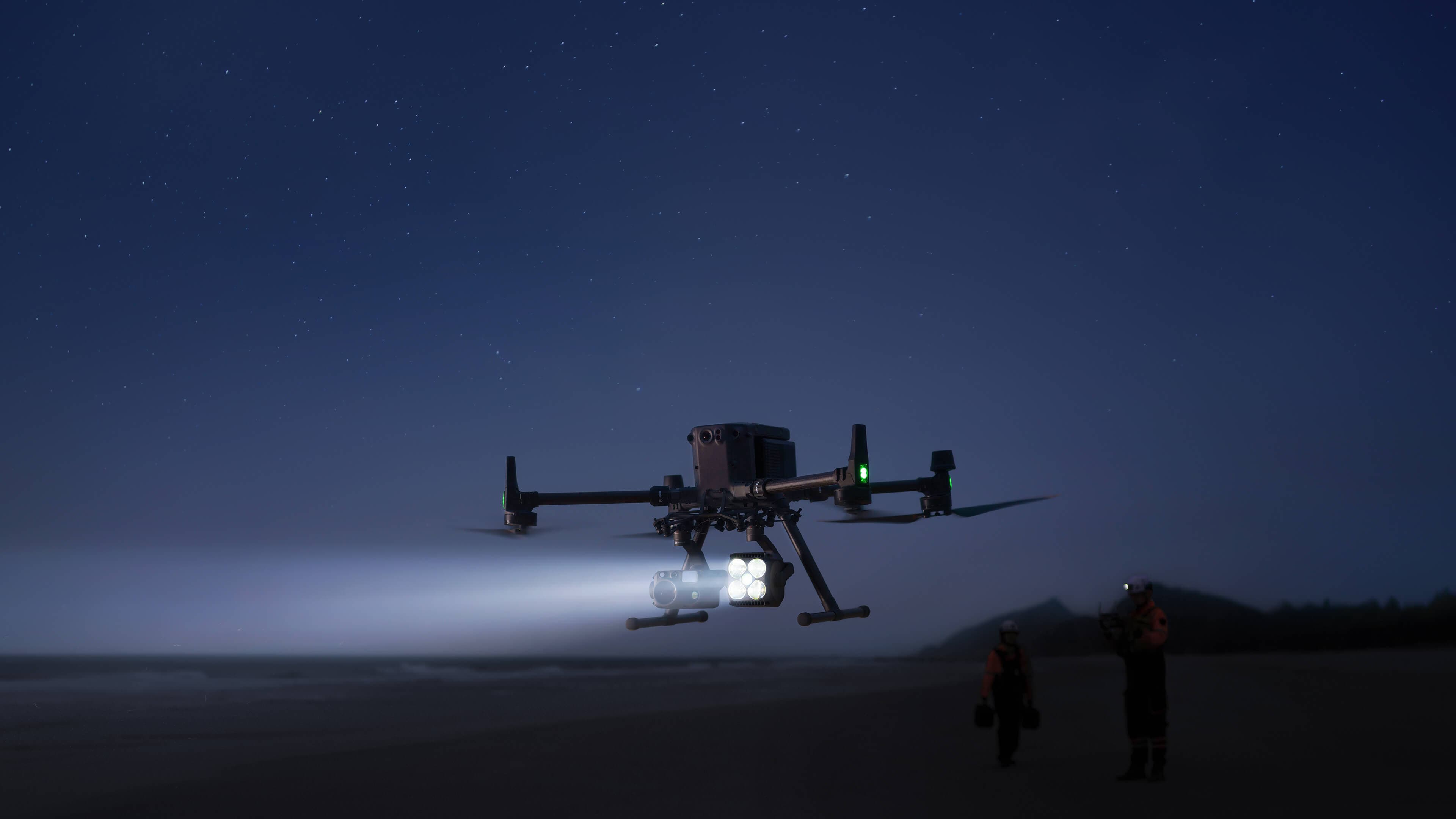

Light Up The Night
DJI's First Spotlight for Multi-Payload Drone Platforms
Provides a 15° field of view (FOV) [2] within a distance of 150 meters [1], covering the illumination range of a camera at 5x zoom or above. [3] This mode is suitable for most short-distance search and inspection needs.
Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) [4] at a distance of 300 meters. [1] It covers the illumination range of a camera at 15x zoom or above, [3] enhancing efficiency in emergency rescue and public safety operations.
Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. [1] This mode offers maximum illumination coverage for comprehensive situational awareness.
Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.
Powerful Illumination
Zenmuse S1 delivers a maximum central illuminance of 40 lux at 100 meters [5], providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 24 W [6], reducing the power load on the drone and helping to maintain the flight time.
When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation.
Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
Zenmuse S1 features a plastic casing [7] with a contact surface temperature that does not exceed 50° C (122° F), [1] effectively preventing burn risks.
When two Zenmuse S1 are mounted on Matrice 400, both spotlights can be controlled at the same time, including turning the light on/off, brightness adjustment, and gimbal angle control.
When used with Matrice 400 and the Zenmuse H30 Series, Zenmuse S1 supports remote real-time video viewing and spotlight control through DJI FlightHub 2.
With an IP54 rating for dust and water resistance, [8] Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various environments.
Zenmuse S1 can be mounted on any gimbal connector of Matrice 400, Matrice 350 RTK, or Matrice 300 RTK, accommodating various operational needs. Weighing only 0.76 kg, [9] it is compact and portable, and it also fits into the carrying case of Matrice 400.
