Flagship All-Weather Multi-Sensor Payload
Unparalleled Vision, Day or Night
Advanced multi-sensor payload capabilities

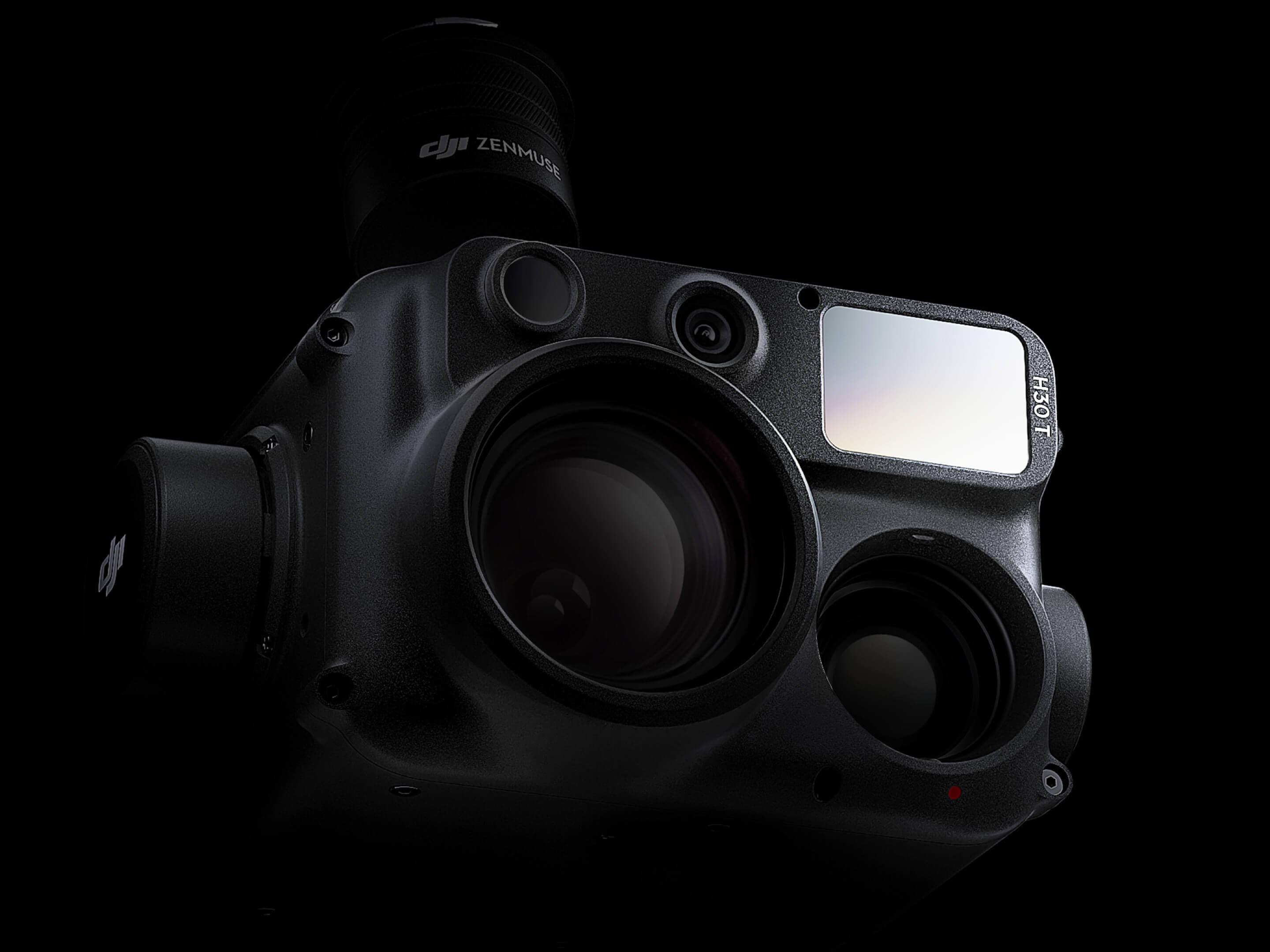

Discover the power of Zenmuse H30 Series

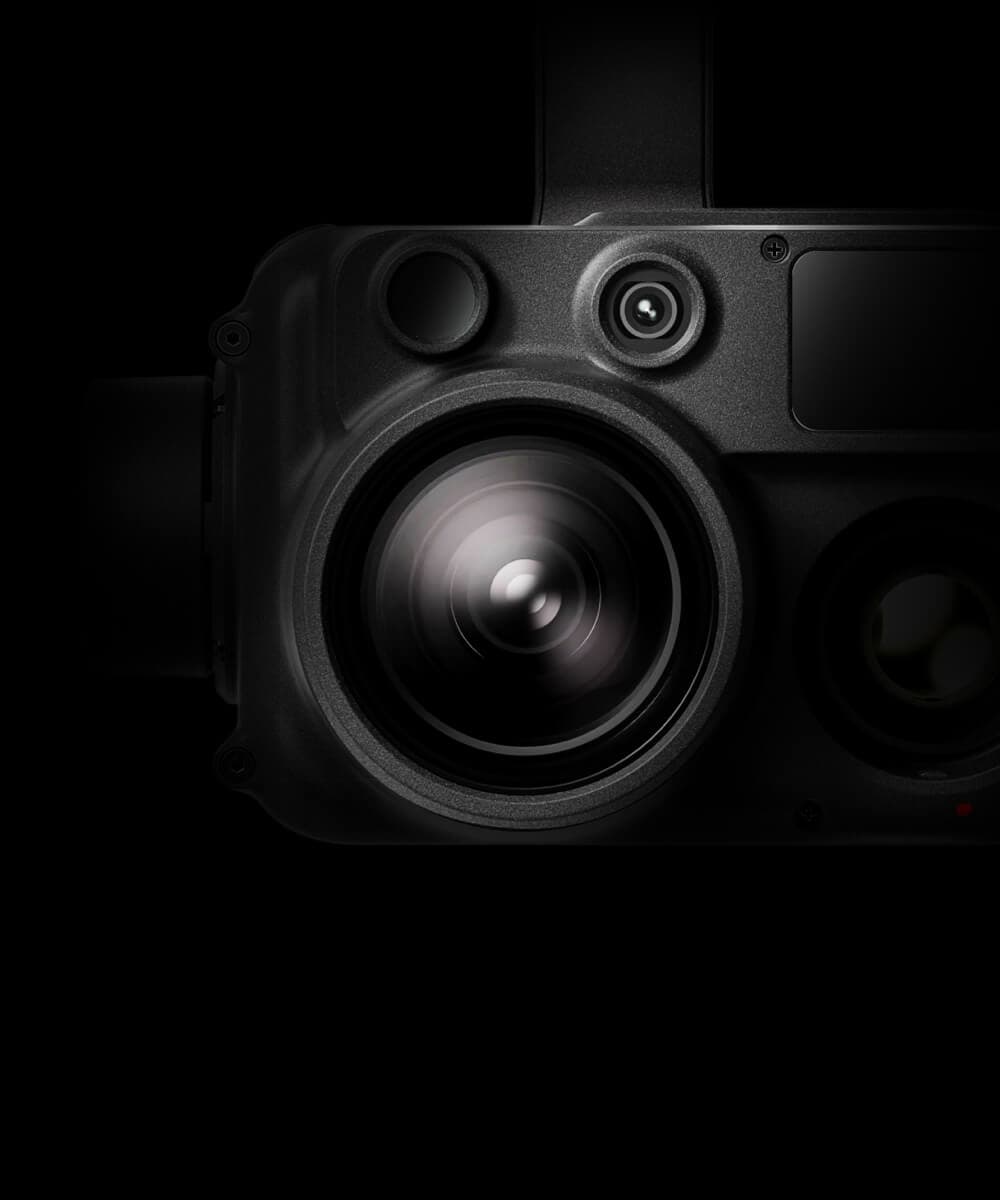

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, [2] it not only observes subjects at greater distances but also captures more details.
With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

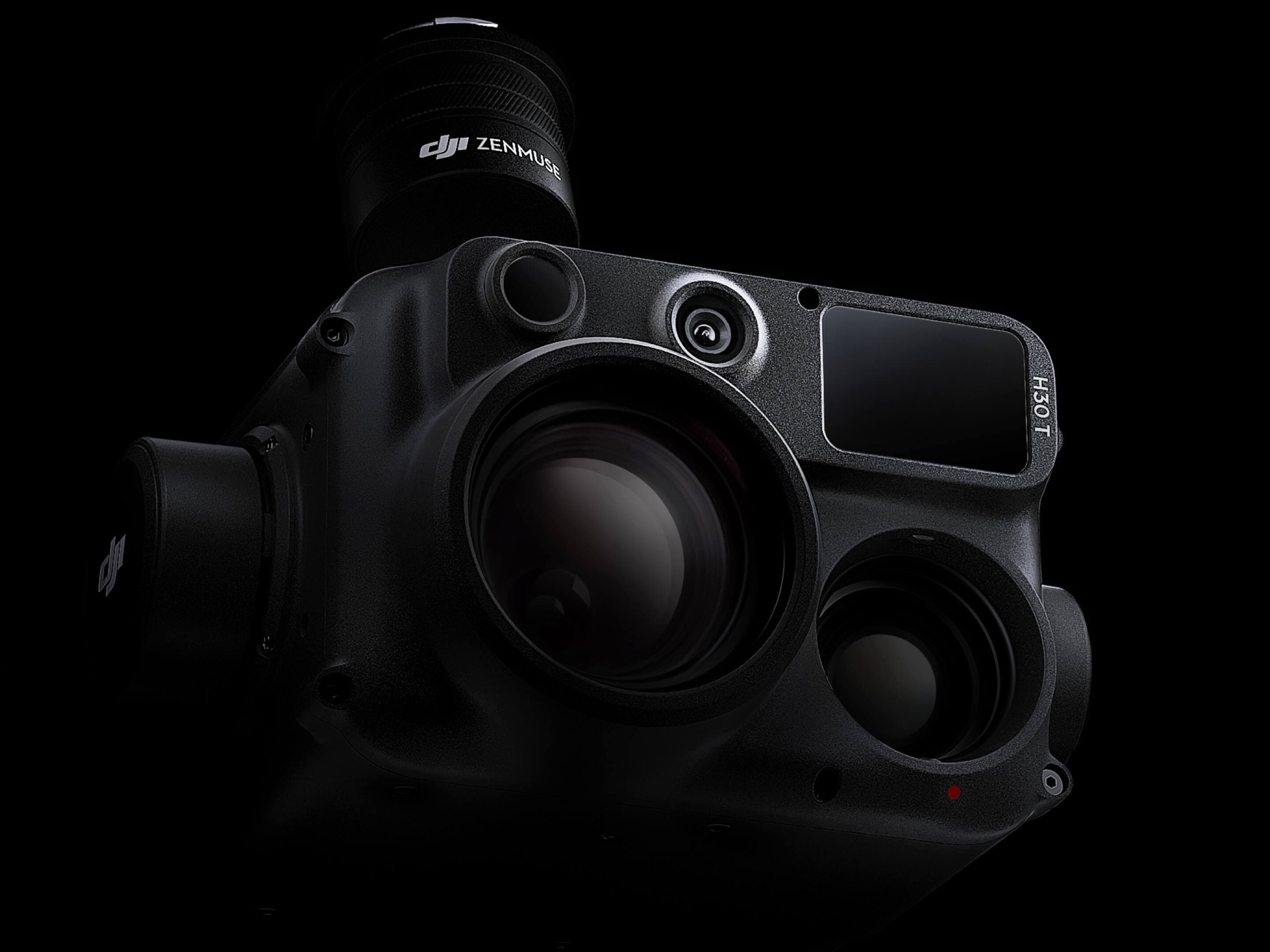

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, [3] accurately capturing the position information of subjects within a range from 3 m to 3000 m, [4] including linear distance from the camera, altitude, and GPS coordinates.
Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

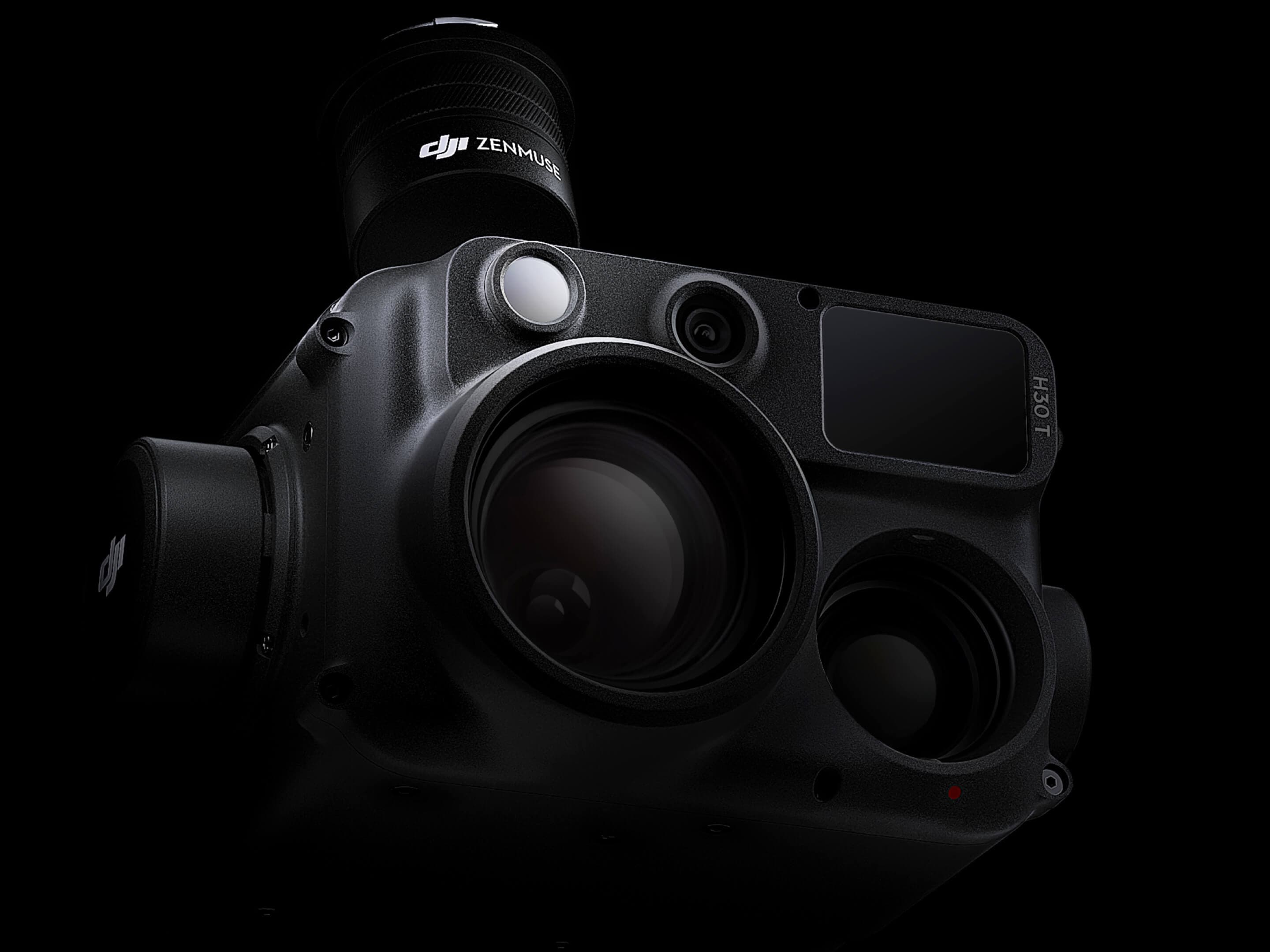

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. [5] It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for night safety observation and search-and-rescue operations.
The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, [6] with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, [7] ensuring the infrared images remain clear.

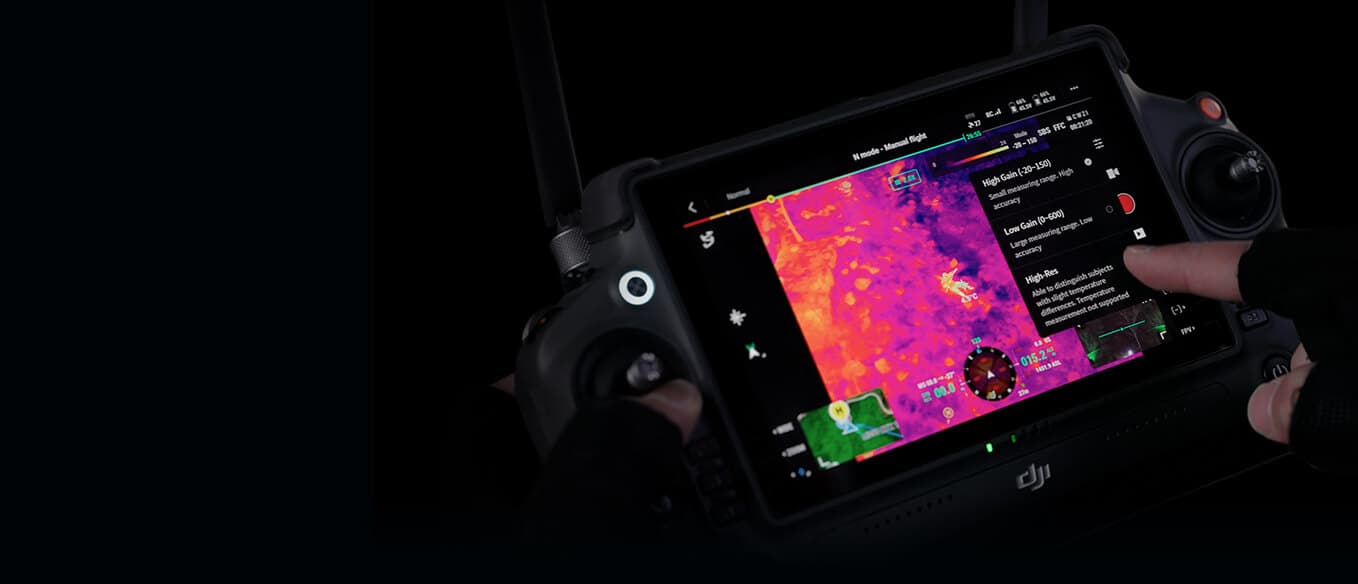

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, [8] which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.
The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

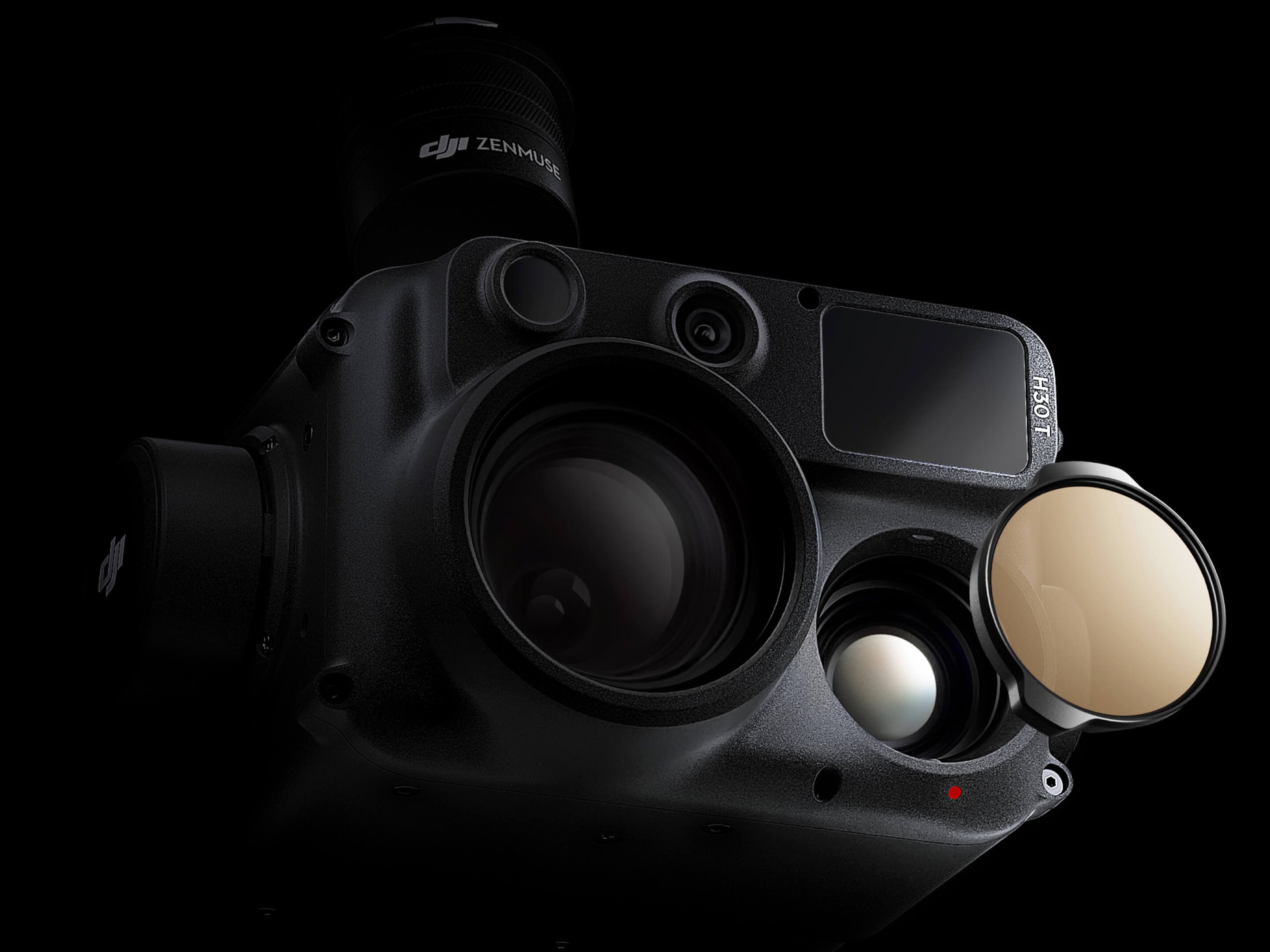

With the installation of an infrared density filter, [9] the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. [10] This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.
In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.

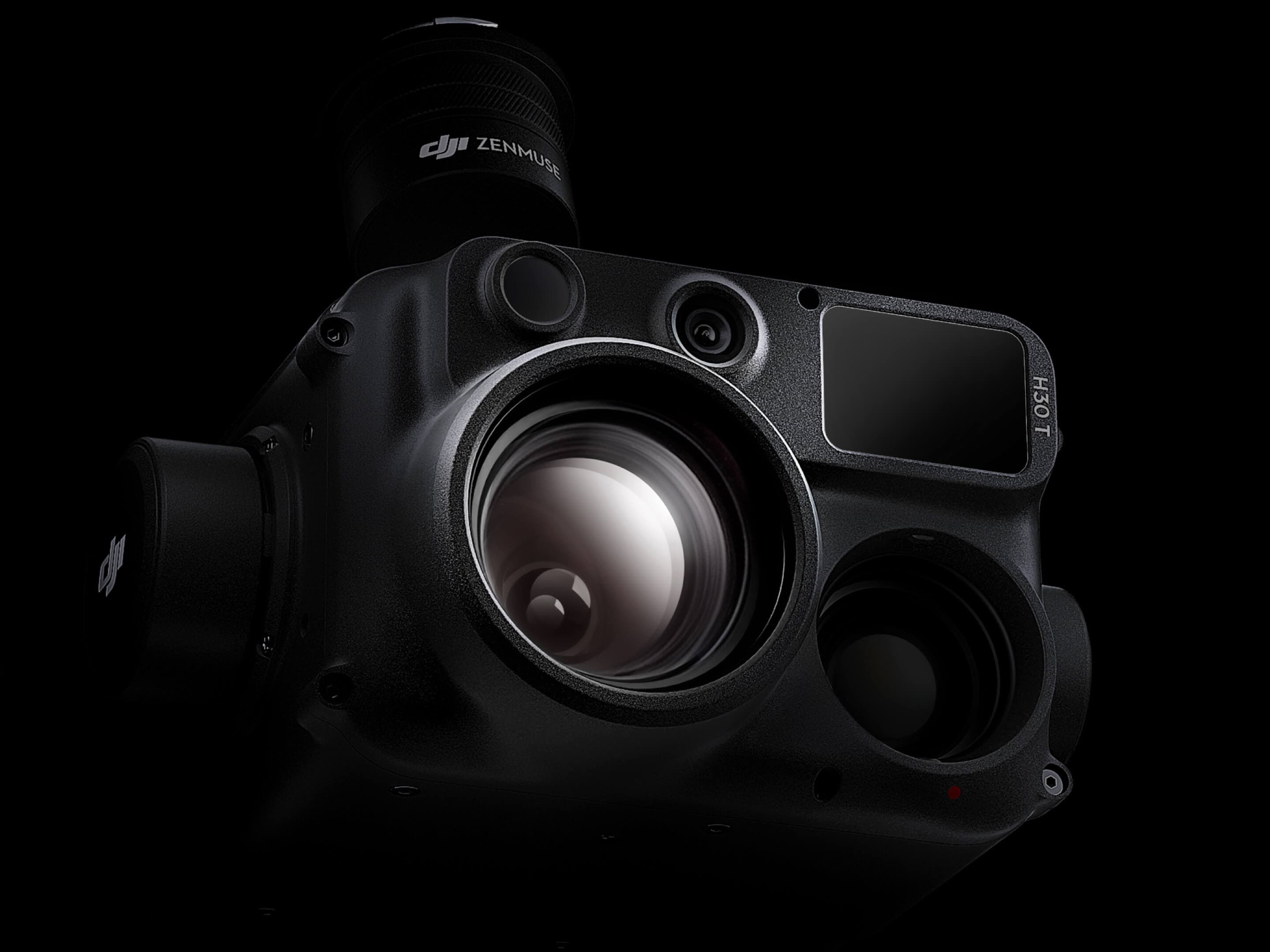

In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function [11] to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.
Ingress Protection
With an IP54 dust and water resistance rating, [12] the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.
Operating Temperature
The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.
